SUCOFLEX 126系列电缆组件

灏讯（HUBER+SUHNER）射频类产品专业供应商

MXPD70——全新同轴转PCB免焊互连方案

您在这里：

SUCOFLEX 126系列电缆组件

The low loss, phase stable assembly up to 26.5 GHz

咨询更多产品信息

产品描述

产品描述
SUCOFLEX_126 cables combines the low loss and power of SUCOFLEX 104 with the phase stability of SUCOFLEX 104P. Where low loss, combined with phase and amplitude stability is required, SUCOFLEX_126 must be applied.

产品特性
• Applicable up to 26.5 GHz
• Excellent return loss
• Excellent phase- and amplitude stability
• Low loss
• Wide range of connectors
• Crush resistant armour available

可配连接器
BNC, DV, N, PC3.5; PC7, SMA, TNC, 7/16

典型产品
SF126E/SMAm/SMAm/500mm
SF126E/SMAm/SMAm/1000mm
SF126E/PC35m/PC35m/1000mm
SF126EA/Nm/Nm/1000mm
SF126EA/SMAm/SMAm/1000mm
SF126EA/Nm/Nm/1500mm

SUCOFLEX 126系列电缆组件

The low loss, phase stable assembly up to 26.5 GHz

分类： SUCOFLEX Assemblies 标签： 26.5 GHz 50 Ω HUBER+SUHNER SUCOFLEX

描述

产品特性
• Applicable up to 26.5 GHz
• Excellent return loss
• Excellent phase- and amplitude stability
• Low loss
• Wide range of connectors
• Crush resistant armour available

可配连接器
BNC, DV, N, PC3.5; PC7, SMA, TNC, 7/16

典型产品
SF126E/SMAm/SMAm/500mm
SF126E/SMAm/SMAm/1000mm
SF126E/PC35m/PC35m/1000mm
SF126EA/Nm/Nm/1000mm
SF126EA/SMAm/SMAm/1000mm
SF126EA/Nm/Nm/1500mm

其他信息

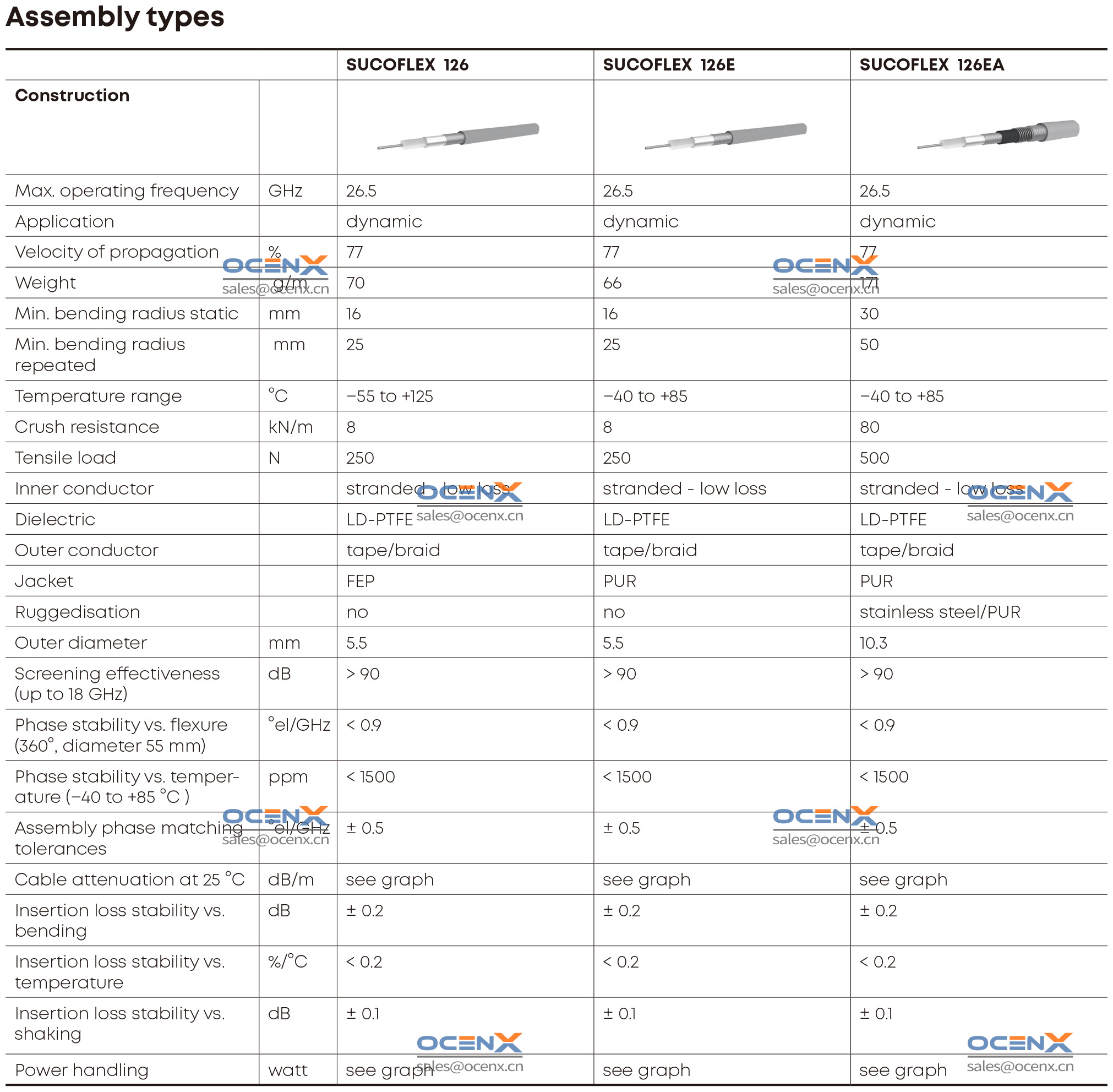

系列电缆型号	SUCOFLEX_126, SUCOFLEX_126_E, SUCOFLEX_126_EA
适配的连接器	7/16, BNC, N, PC3.5 (3.5 mm), PC7 (7 mm), SMA, TNC
组件长度	可定制
