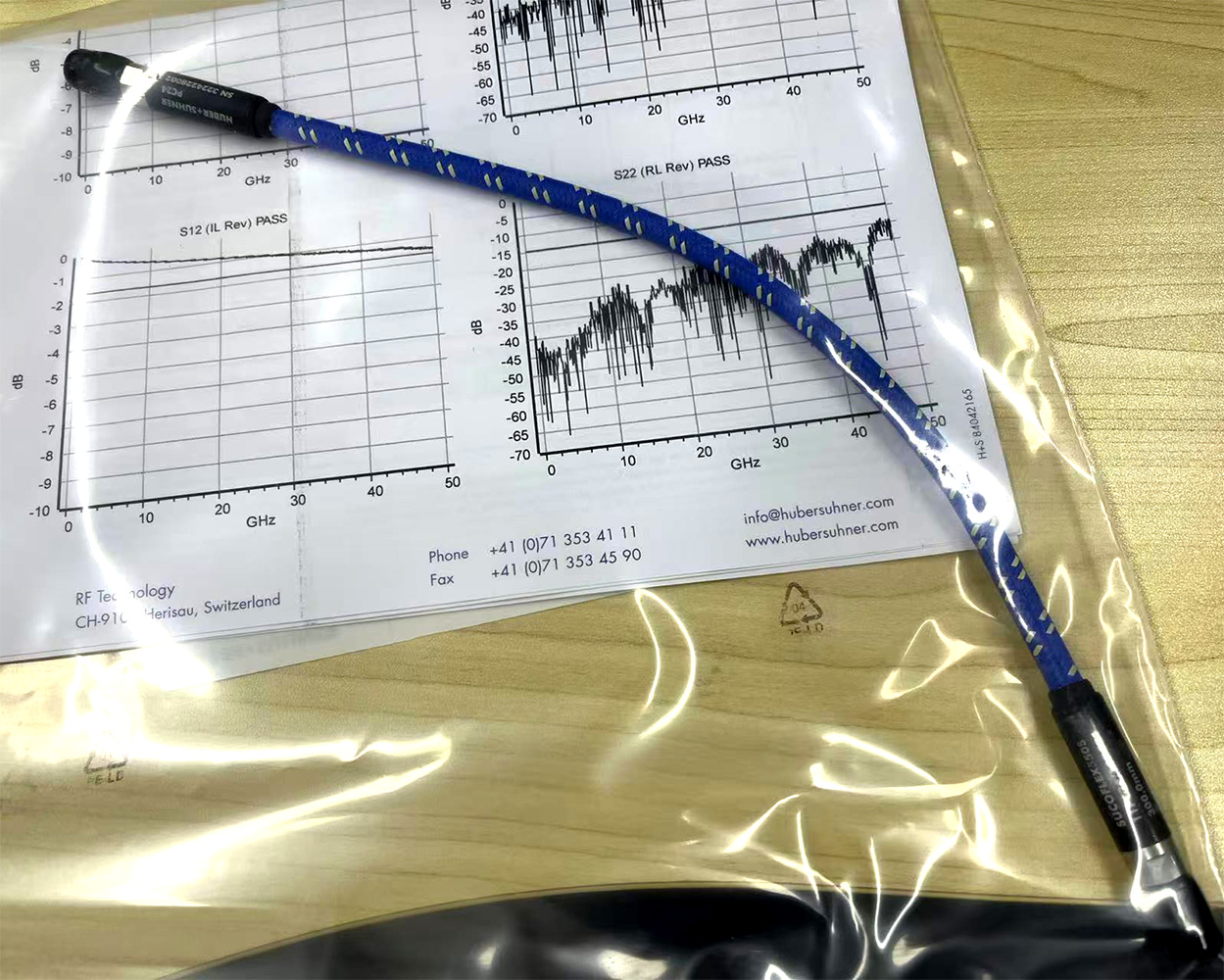

HUBER+SUHNER MICROWAVE TEST ASSEMBLY, SUCOFLEX_550_S, 2.4mm (male), 2.4mm (male), 50 Ohm, 50 GHz, 300mm.
Product code: SF550S/11PC24/11PC24/300mm
Brand: HUBER+SUHNER
Assembly family: SUCOFLEX 500
Assembly type: Microwave Test Assemblies
Product configuration
Type of cable: SUCOFLEX_550_S
Type description connector A: SF_11_PC24-501 (2.4mm male, straight – plug)
Type description connector B: SF_11_PC24-501 (2.4mm male, straight – plug)
Assembly length: 300 mm (REF to REF)
Electrical data
Impedance: 50 Ohm
Operating frequency (max.): 50 GHz
Return loss (min.): -17 dB
VSWR (max.): 1.33
Insertion loss (max.): 1.6 dB
Signal delay: 4.3 ns/m
Propagation velocity: 77%
Amplitude stability vs. flexure: +/- 0.05 dB
Phase stability vs. flexure: +/- 6 °
Phase- / Time delay matching: Time delay absolute, +/- 1 ps
Mechanical data
Cable diameter: 6.1 mm
Bending radius static (min.): 25.4 mm
Flex Life (cycles): 100000
Key features
Applicable up to 50 GHz
High phase – and amplitude stability with flexure and movement
Excellent insertion and return loss
Precise and repeatable measurements
Long life time – lower measurement cost
Ordering information
1. SF550S/11PC24/11PC24/300mm
2. Other connector and length available on request
