SUCOFLEX 102系列电缆组件

The high performance microwave cable assembly working up to 46 GHz

咨询更多产品信息

产品描述

产品描述
SUCOFLEX 102 are ideal for applications up to 46 GHz or wherever the weight or the diameter are the critical factors to be taken into account. The connectors mainly used here are PC2.4 and SK, for «low frequency» applications also SMA, N and TNC. Typical applications include test laboratories and aircraft manufacture. The available ruggedisations are matched to the particular applications.

产品特性
• Impedance 50 Ω
• Applicable up to 46 GHz
• High stability and low loss
• Wide range of connectors
• LSFH jacket and further ruggedisations on request

可配连接器
SMA, N, TNC, PC3.5, SK, PC2.4

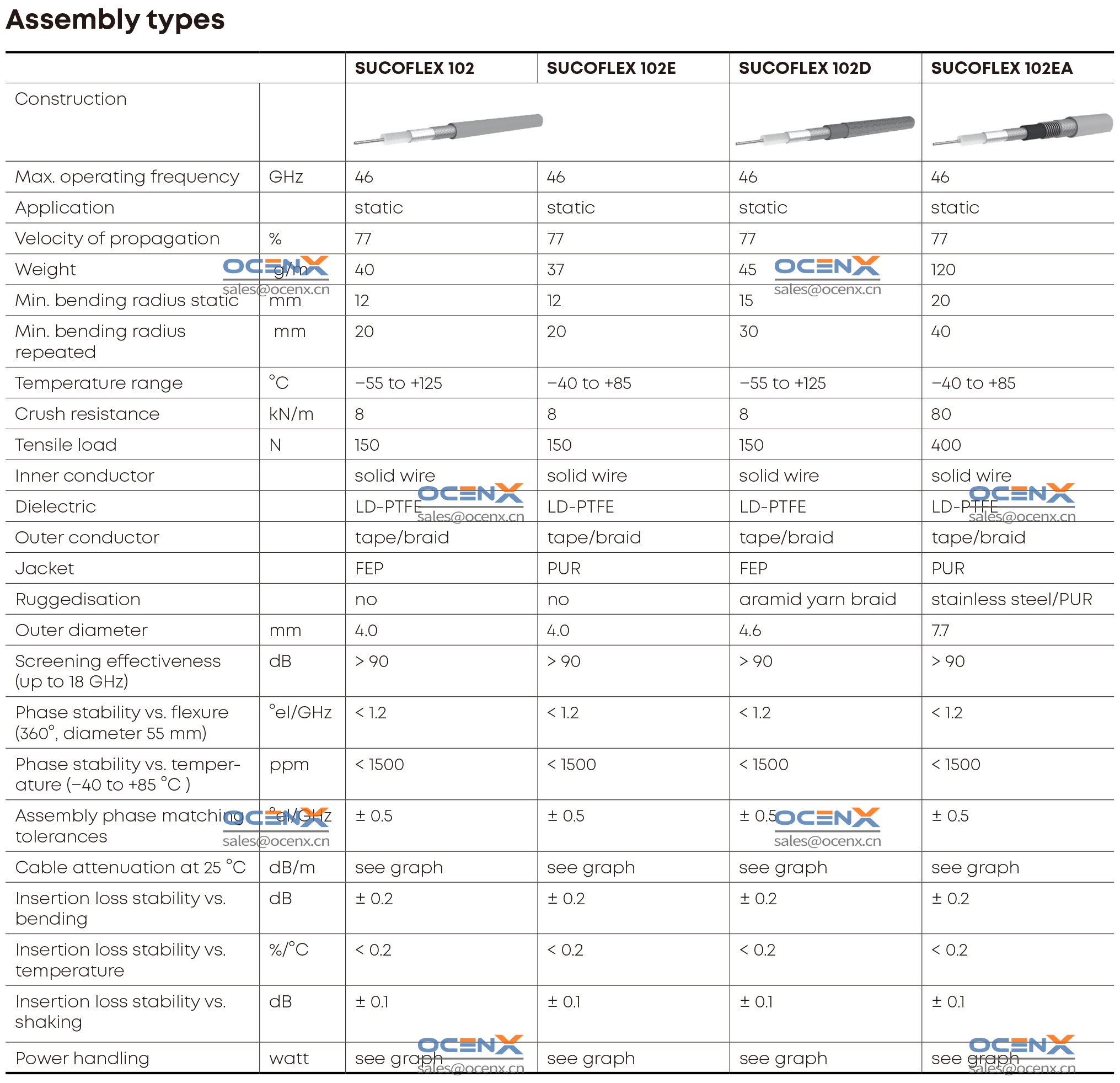

SUCOFLEX_102_Assembly-types

相关产品

SUCOFLEX 102系列电缆组件

The high performance microwave cable assembly working up to 46 GHz

产品描述

描述

产品描述
SUCOFLEX 102 are ideal for applications up to 46 GHz or wherever the weight or the diameter are the critical factors to be taken into account. The connectors mainly used here are PC2.4 and SK, for «low frequency» applications also SMA, N and TNC. Typical applications include test laboratories and aircraft manufacture. The available ruggedisations are matched to the particular applications.

产品特性
• Impedance 50 Ω
• Applicable up to 46 GHz
• High stability and low loss
• Wide range of connectors
• LSFH jacket and further ruggedisations on request

可配连接器
SMA, N, TNC, PC3.5, SK, PC2.4

SUCOFLEX_102_Assembly-types

其他信息

系列电缆型号

SUCOFLEX_102, SUCOFLEX_102_D, SUCOFLEX_102_E, SUCOFLEX_102_EA

组件长度

可定制
