Product description

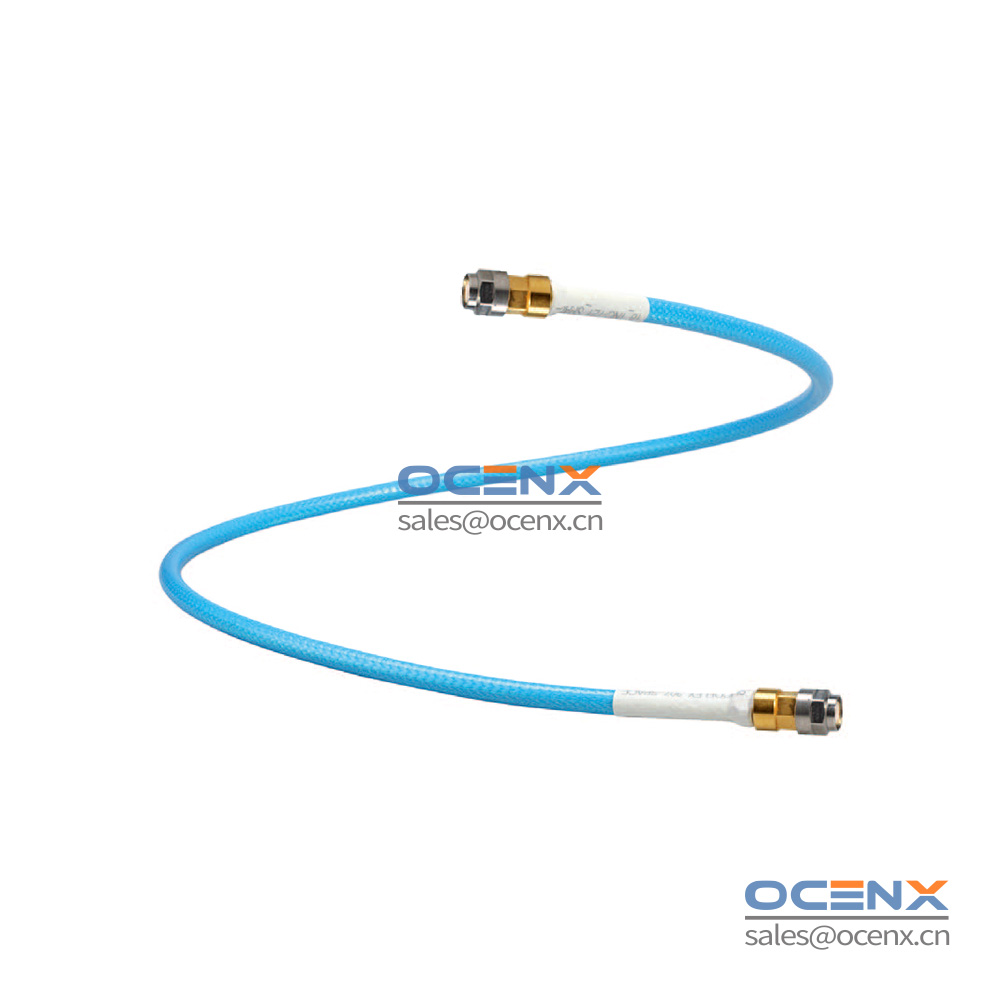

The light weight, high performance microwave cable assembly, SMA (male), SMA (male), 50 Ohm, 18 GHz, 2000mm
Product code: SF304/11SMA487/11SMA487/2M
Brand: HUBER+SUHNER

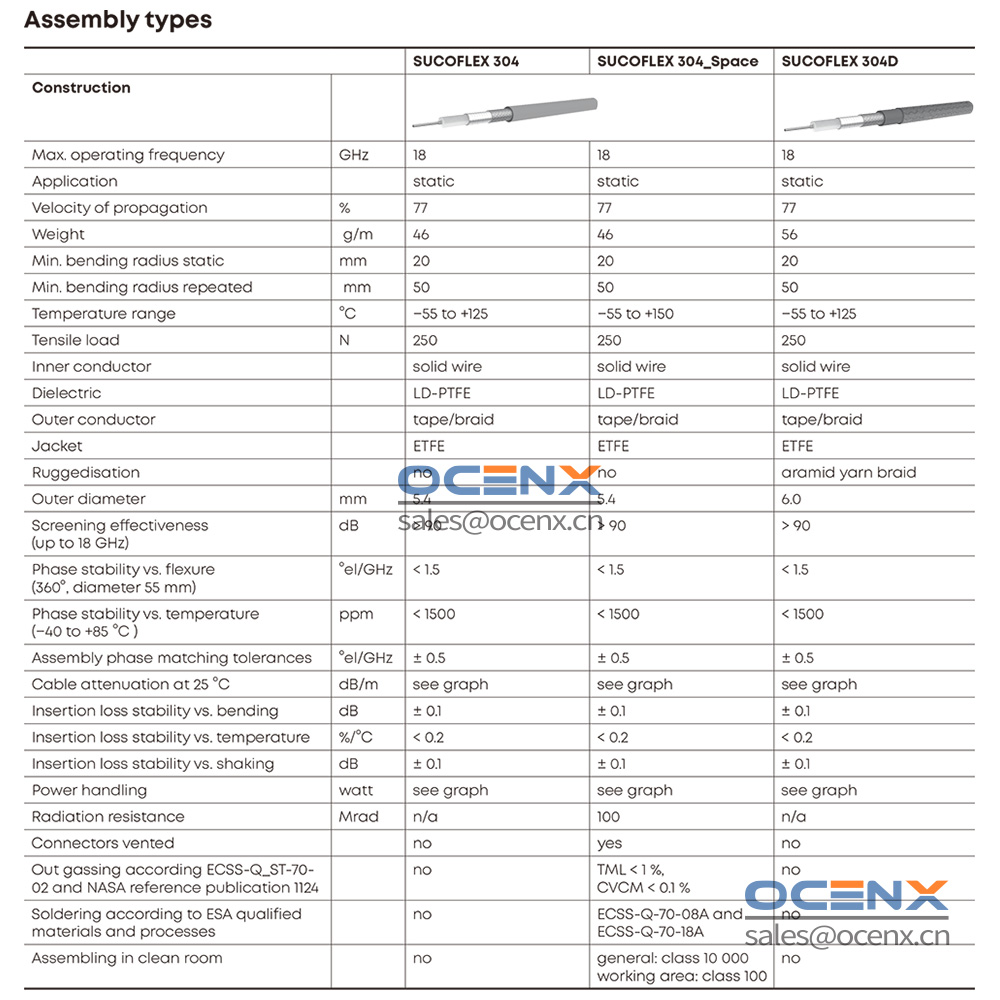

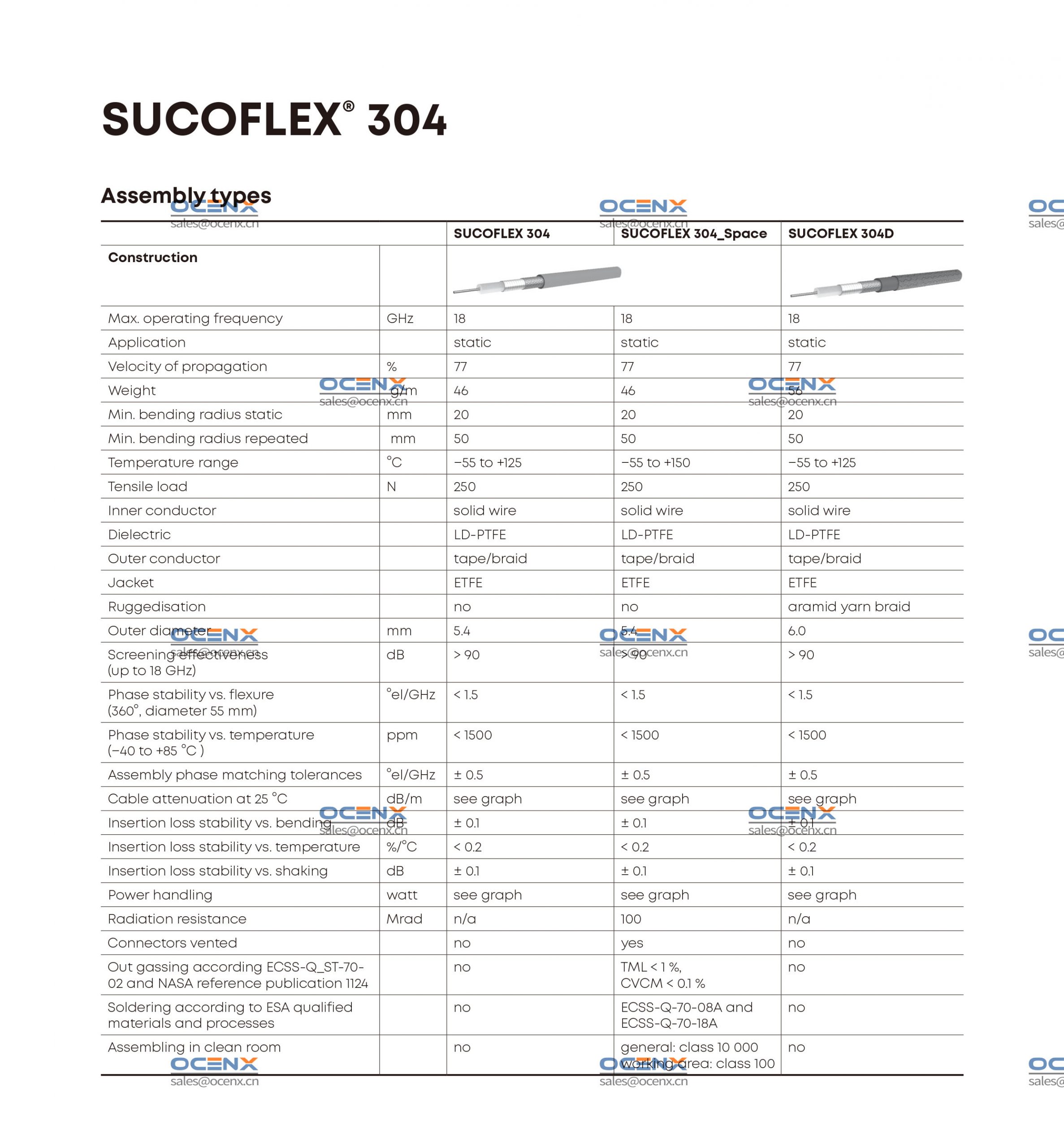

Assembly family: SUCOFLEX 300

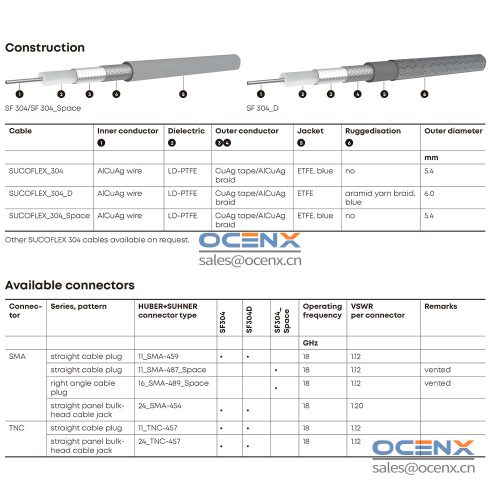

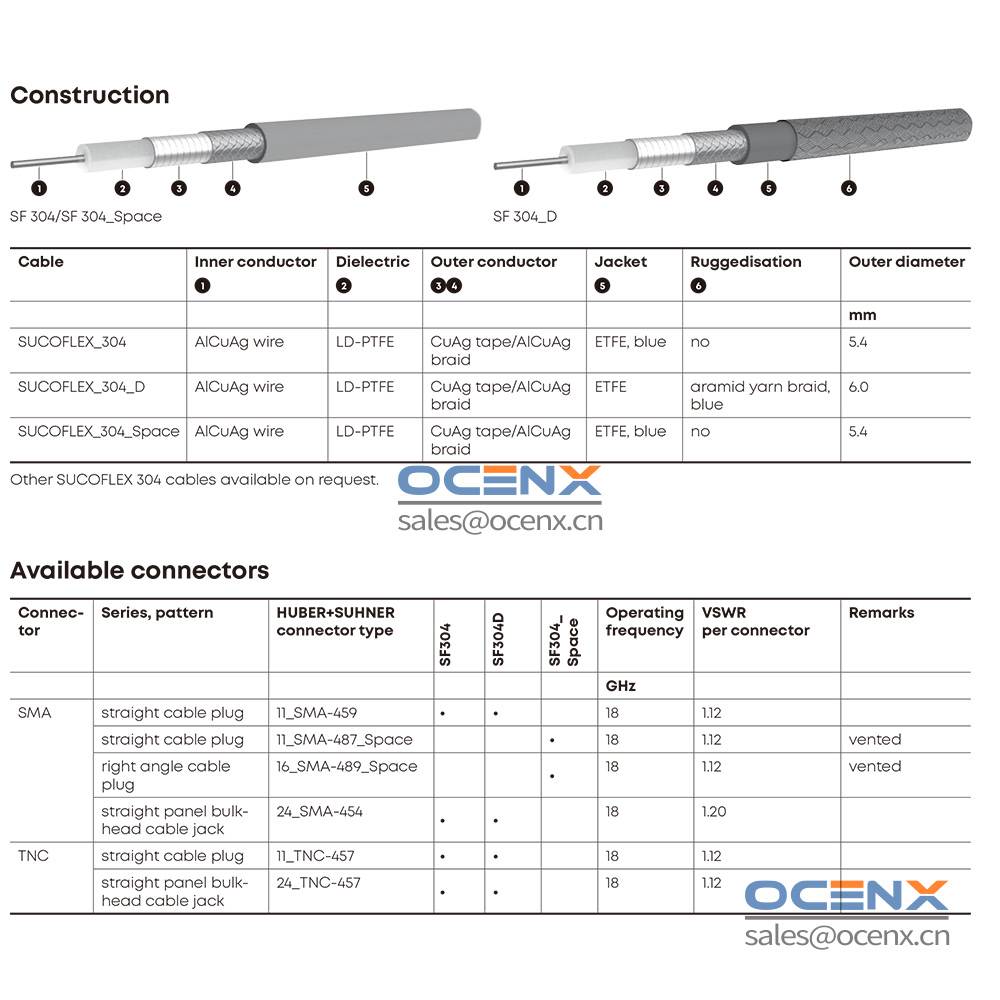

Type of cable: SUCOFLEX_304
Type description connector A: 11_SMA-487 (SMA, straight – plug)
Type description connector B: 11_SMA-487 (SMA, straight – plug)
Length: 2000 mm

Key features

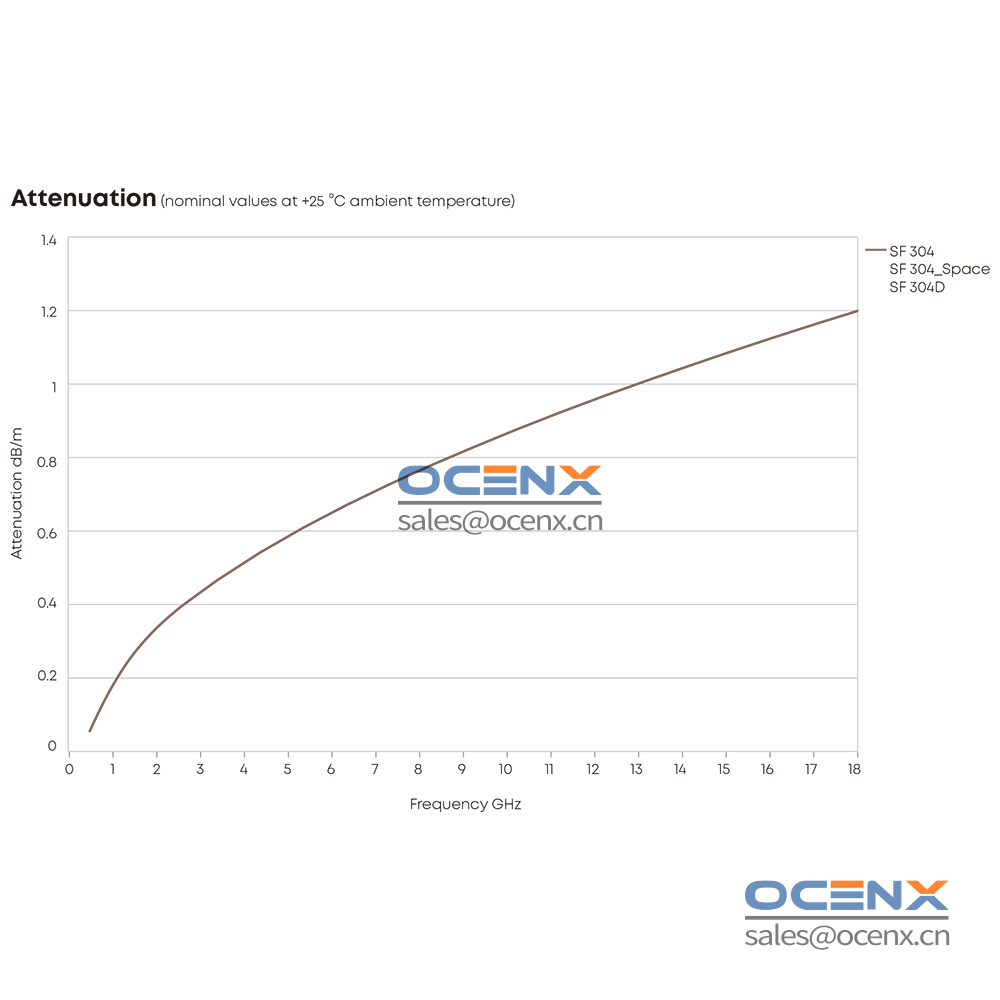

Applicable up to 18 GHz
45 % weight reduction compared to standard SUCOFLEX 104 assemblies (lower launching costs)
Production in clean room
All space connectors vented
Outgassing according ECSS-Q-ST-70-02C and NASA reference publication 1124
MIL-DTL-17 qualified

Benefits
1. Space applications
2. Defense applications

Ordering information
1. 80396569, SF304/11SMA487/11SMA487/2M
2. Other connector and length available on request
