Product description
Qualified, Cost-effective Microwave Cable Assemblies with Excellent Bending Property (“bend-to-the-end”)

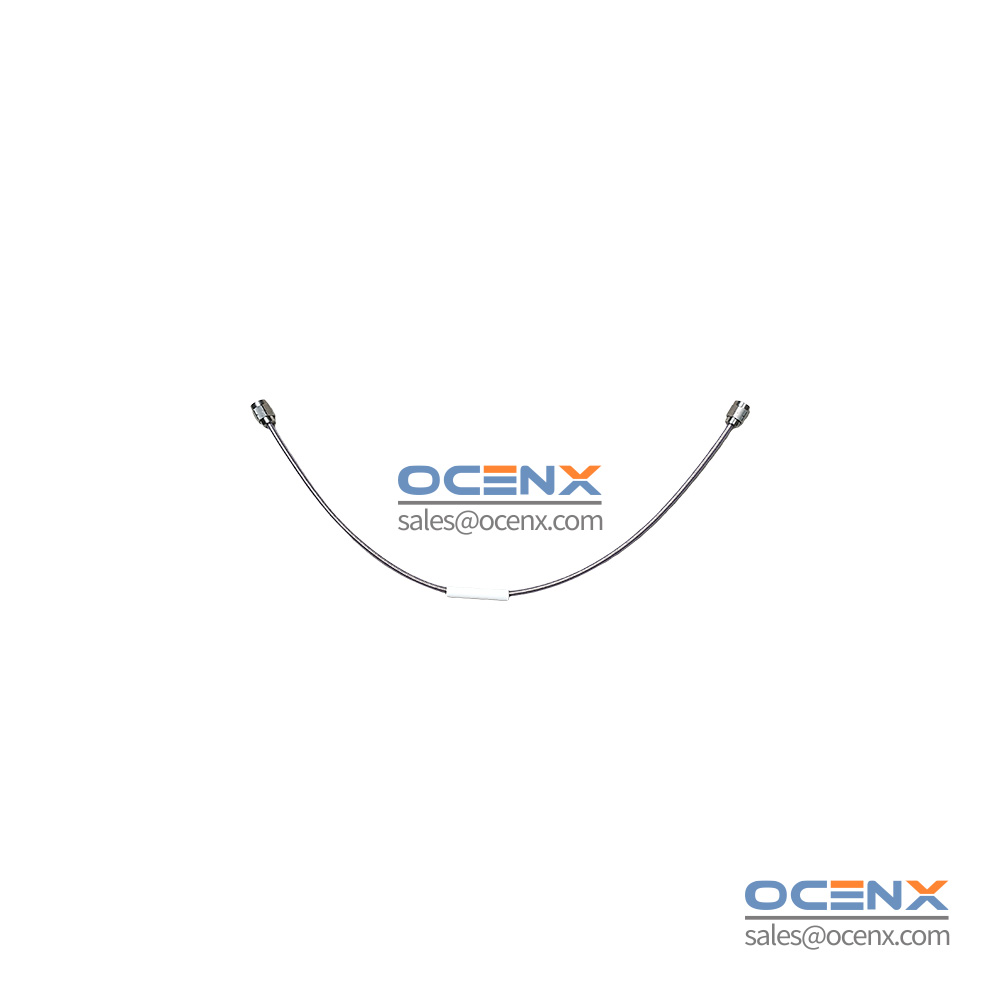

Product code: HB260L-24M24M-00.10M
Type of cable: HB260L (A cost-effective alternative to HUBER+SUHNER Astrolab Minibend L 32024)
Outer diameter: 2.64 mm

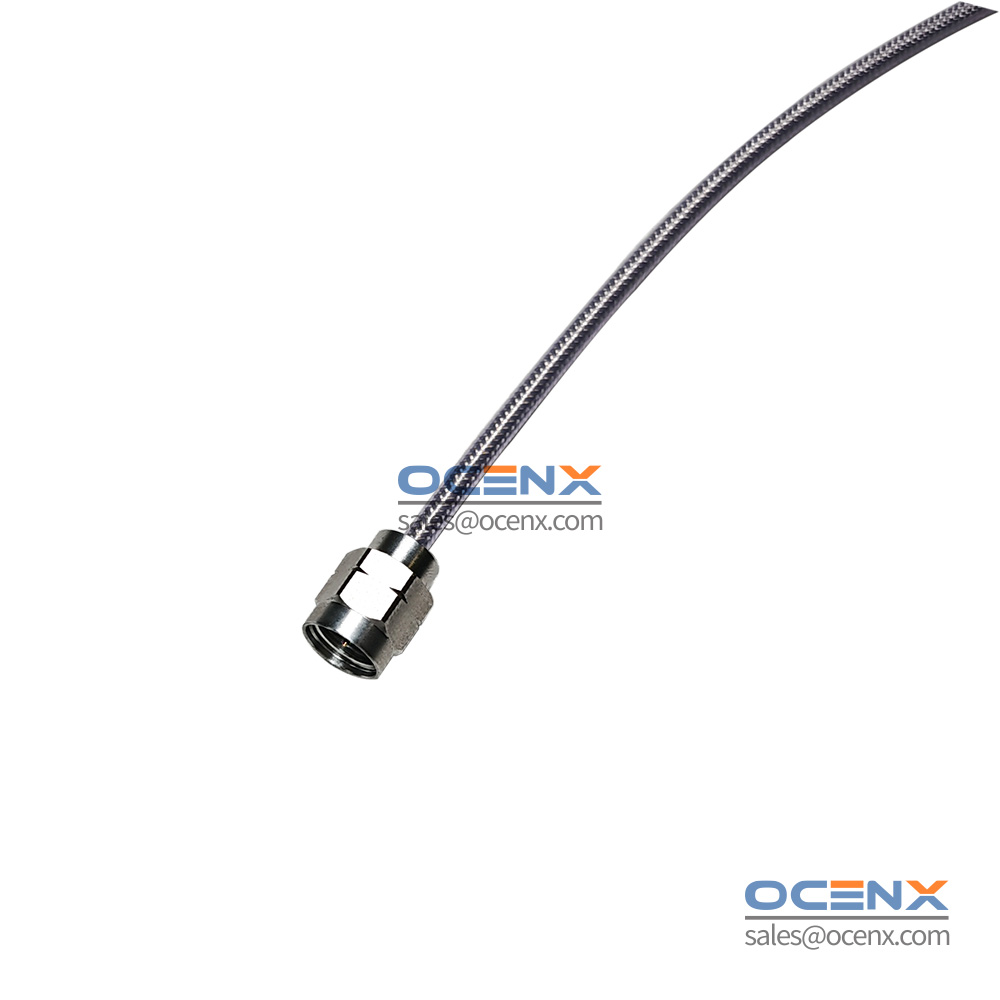

Type description connector left: Straight 2.4mm plug (male)
Type description connector right: Straight 2.4mm plug (male)
Length: 100, 200, 300, … mm (4, 5, 6, … IN)
Armour: N/A
Frequency: DC to 50 GHz

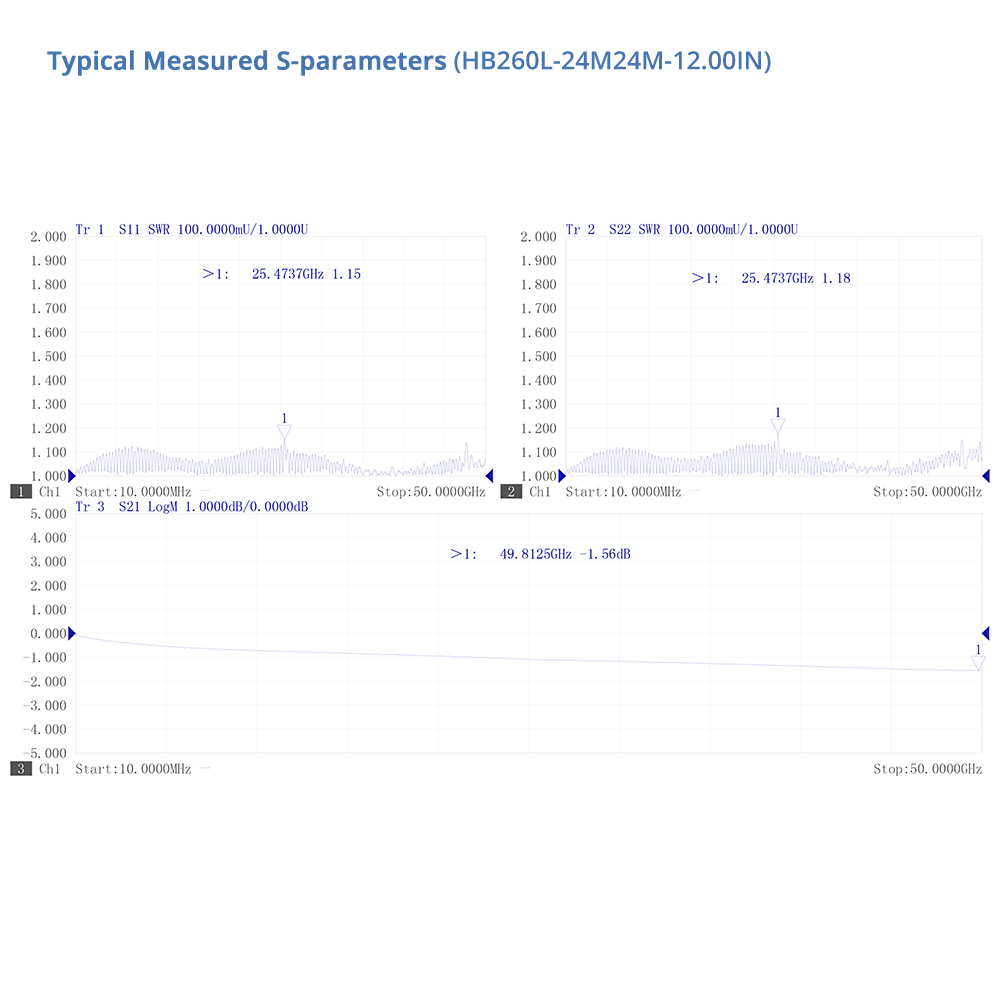

VSWR: ≤ 1.30
Insertion loss: ≤ (4.82*L[M]+0.9) dB dB
Key features
1. Applicable up to 50 GHz (with 2.4mm connector)
2. Triple shielded for high isolation
2. Excellent bending phase, amplitude stability
4. Flexible replacement for 0.086 inch semi-rigid cables
5. Customizable length, and connectors (2.92mm, 2.4mm)
Benefits
1. “Bend-to-the-end”
2. Internal point-to-point interconnections between RF modules within systems.
Ordering information
1. HB260L-24M24M-00.10M
2. HB260L-24M24M-00.20M
3. HB260L-24M24M-00.30M
4. HB260L-24M24M-XX.XXM
5. HB260L-24M24M-03.00IN
6. HB260L-24M24M04.00IN
7. HB260L-24M24M-05.00IN
8. HB260L-24M24M-XX.XXIN
