Product description

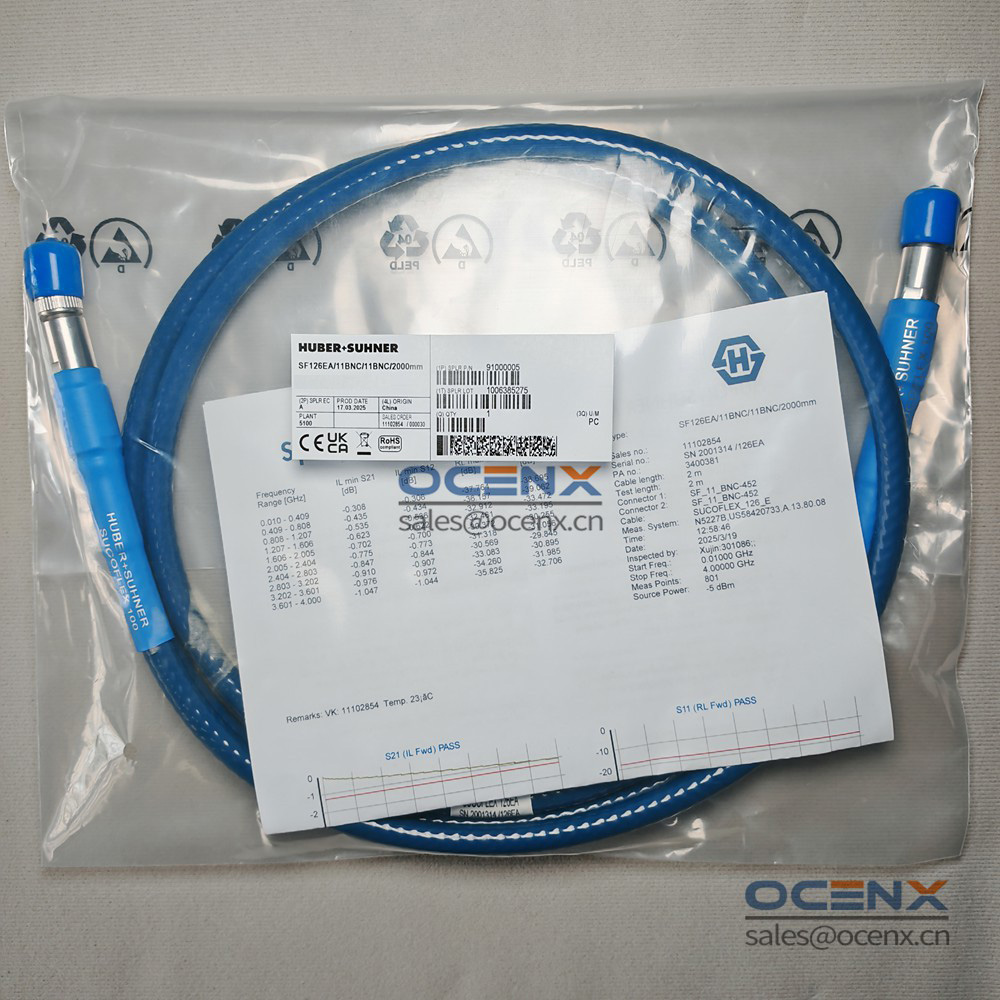

HUBER+SUHNER TEST ASSEMBLIY (Clock Cable Assembly), BNC (male), BNC (male), 50 Ohm, 4 GHz, 2000 mm
Product code: SF126EA/11BNC/11BNC/2000mm
Assembly family: SUCOFLEX 100
Type of cable: SUCOFLEX_126_E
Type description connector A: SF_11_BNC-452, (BNC, straight – plug)
Type description connector B: SF_11_BNC-452, (BNC, straight – plug)
Armour: A-Armour blue, 85°C, ø10.2mm, PUR jacket
Length: 2000 mm

Key features
Applicable up to 4 GHz
Excellent insertion and return loss​
Extremely reliable and robust
A wide range of cables, connectors and armours
MIL qualified

Ordering information
1. SF126EA/11BNC/11BNC/2000mm
2. Other connectors and length available on request
