Product description

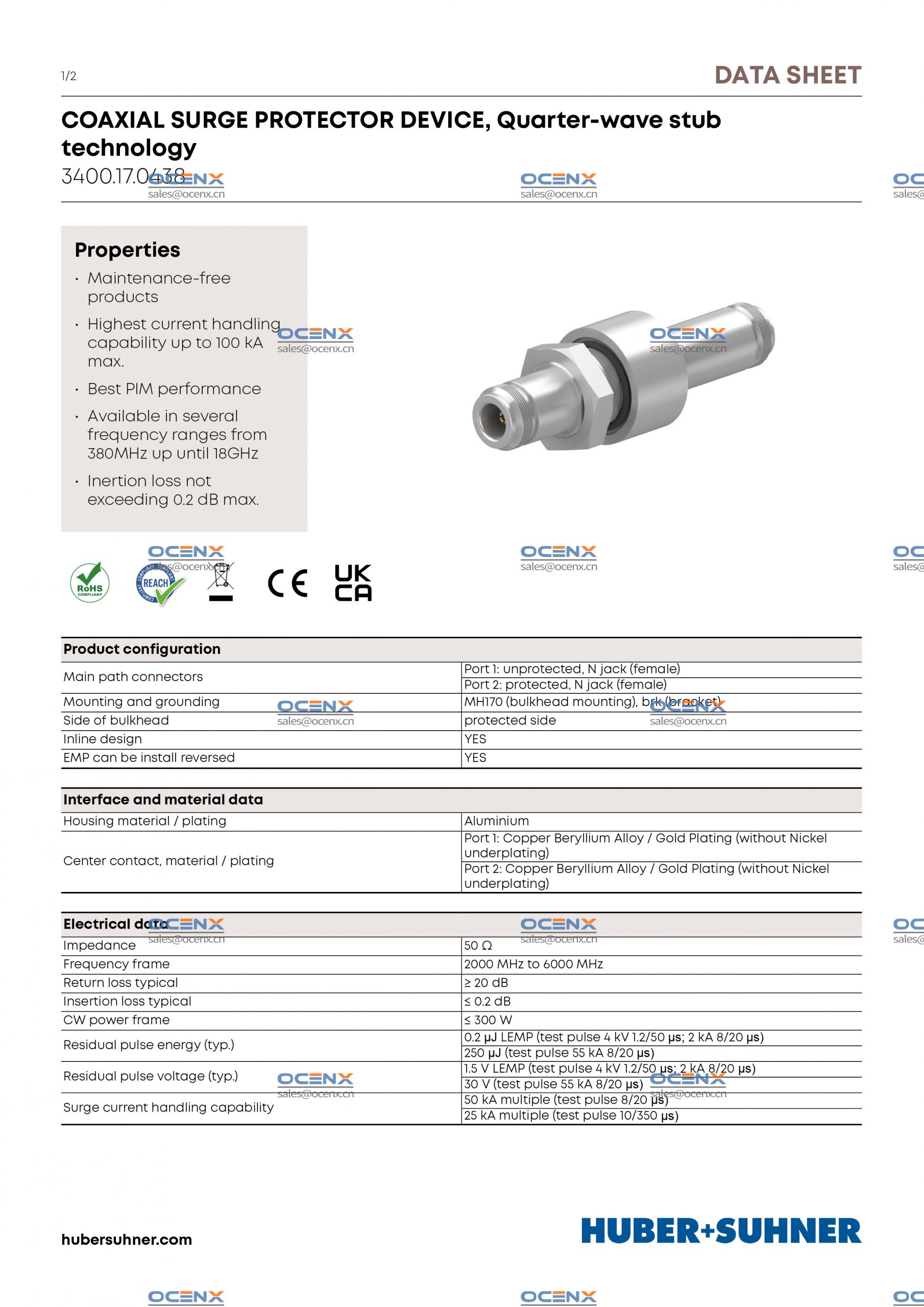

HUBER+SUHNER COAXIAL SURGE PROTECTOR DEVICE, Quarter-wave stub technology

Quarter-wave stub technology
Product code: 3400.17.0438
Brand: HUBER+SUHNER
Port 1: unprotected, N jack (female)
Port 2: protected, N jack (female)
Mounting and grounding: MH170 (bulkhead mounting), brk (bracket)
Side of bulkhead: protected side
Inline design: YES
EMP can be install reversed: YES
Inline design: 50 Ω
Frequency frame: 2000 MHz to 6000 MHz
Return loss typical: ≥ 20 dB
Insertion loss typica: ≤ 300 W

Key features
Maintenance-free products
Highest current handling capability up to 100 kA max.​
Best PIM performance
Inertion loss not exceeding 0.2 dB max.

Ordering information
1. 84148376, 3400.17.0438
